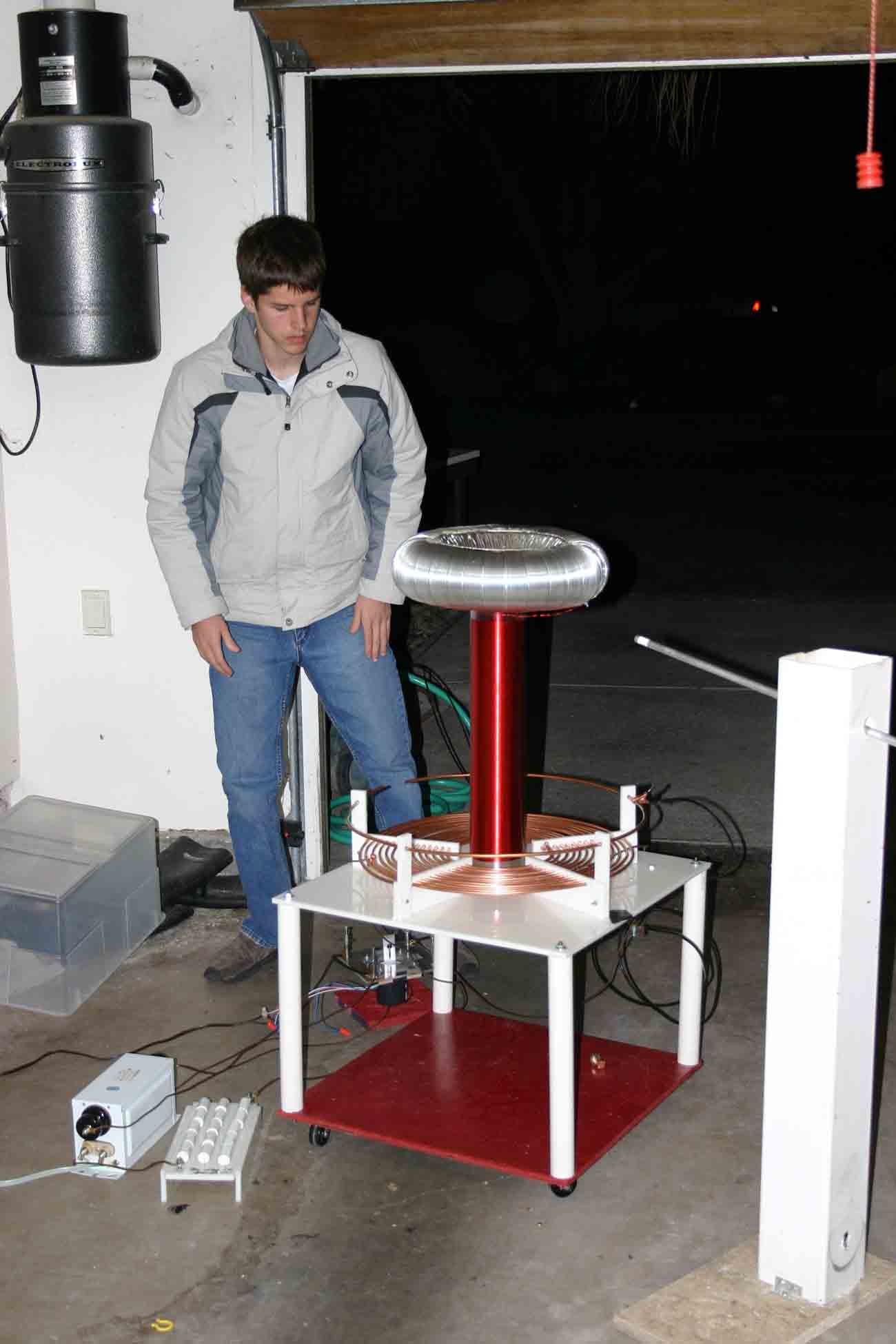

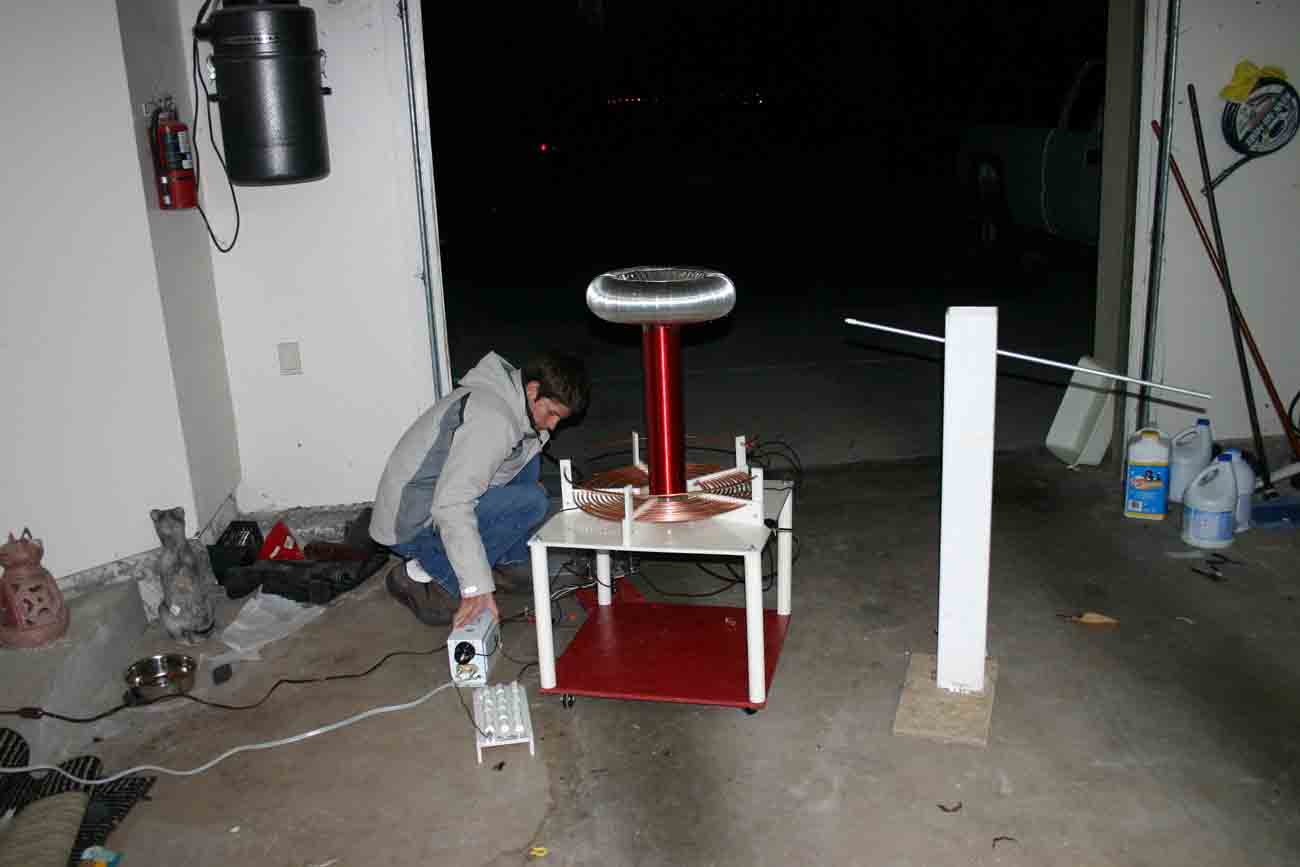

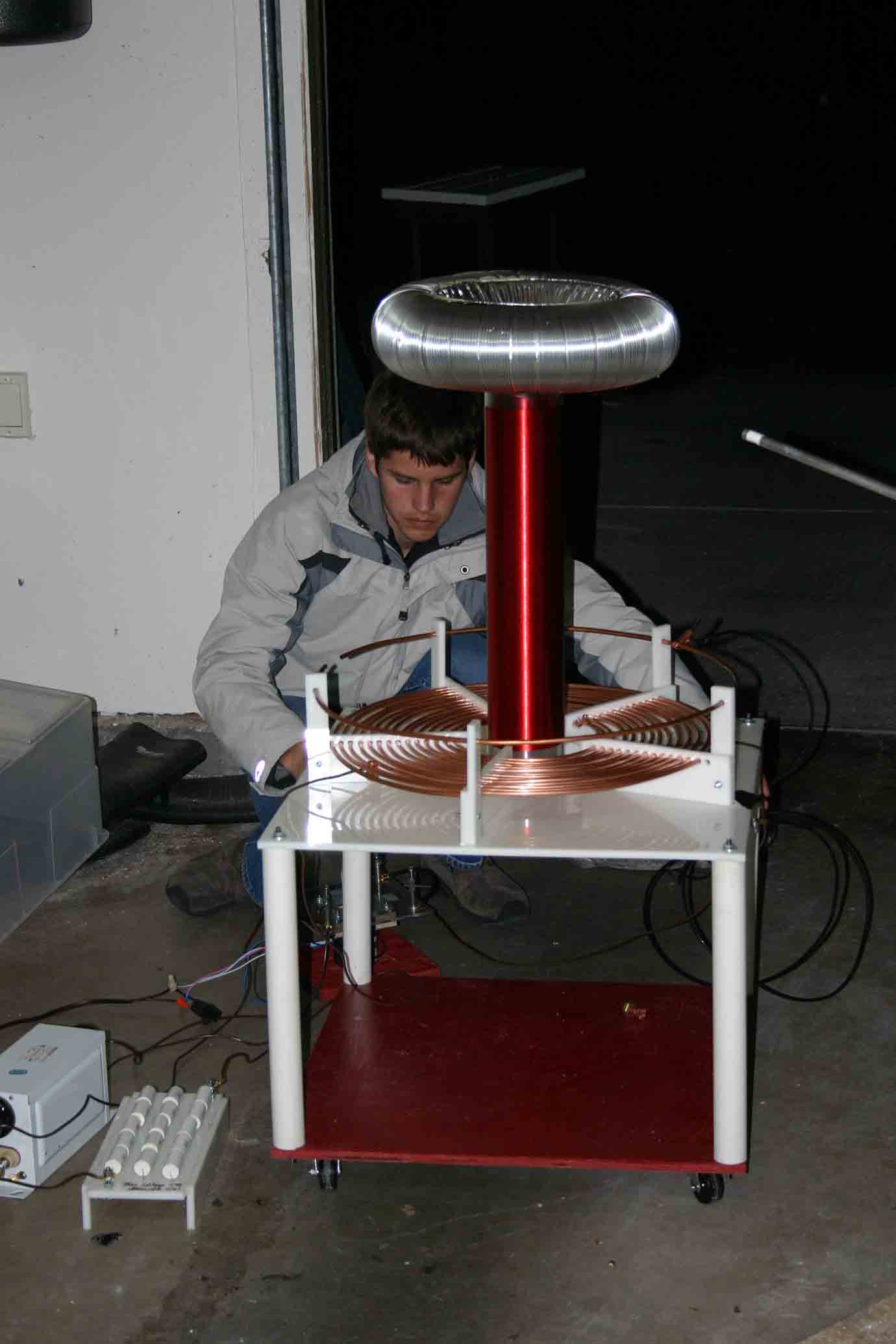

Tesla Coil 1


Transformer 12KV 30ma Neon Sign Transformer
Primary .25'' Cu Tube
Secondary 4 X 18 inch wound with 26AWG
Spark Gap Synchronous Rotary Spark Gap giving 60BPS
Capacitor Bank MMC bank 0.0066uf at 30KV
Toroid 4'' Aluminum Ducting


sgsdgdfg ghgjyr bdsbdb

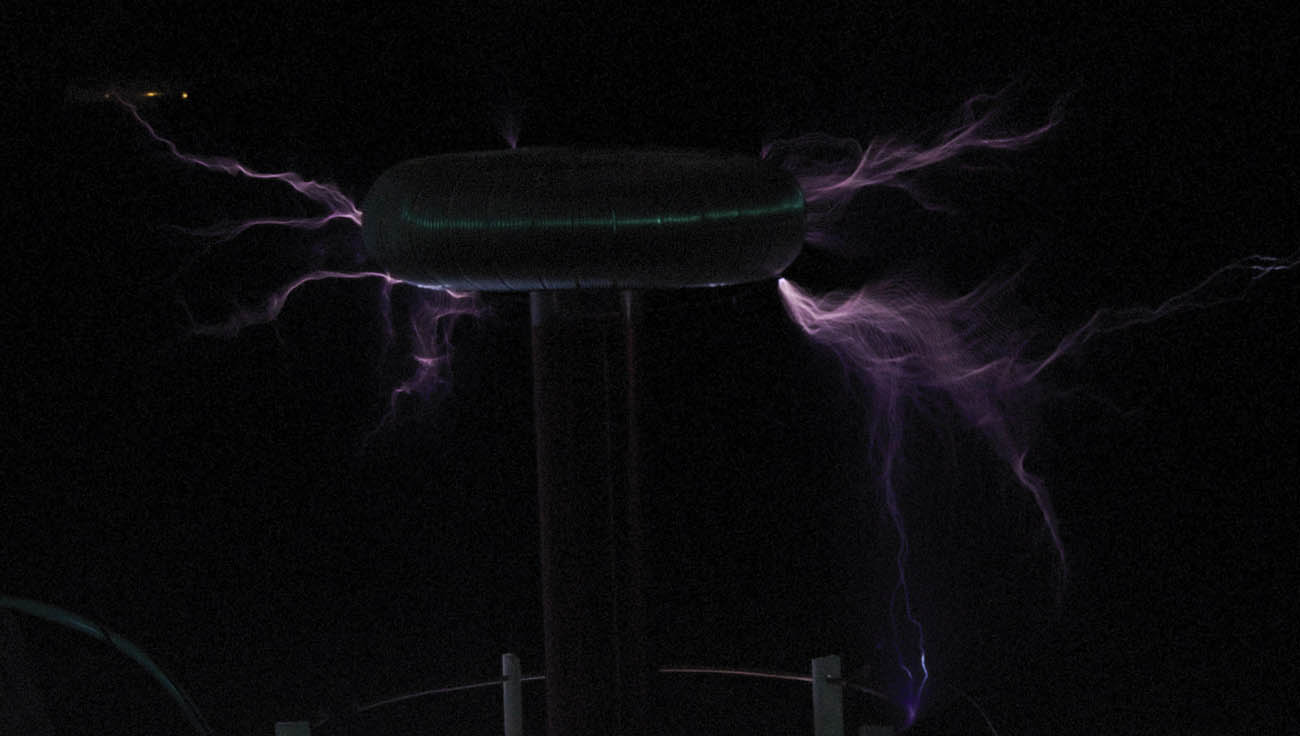

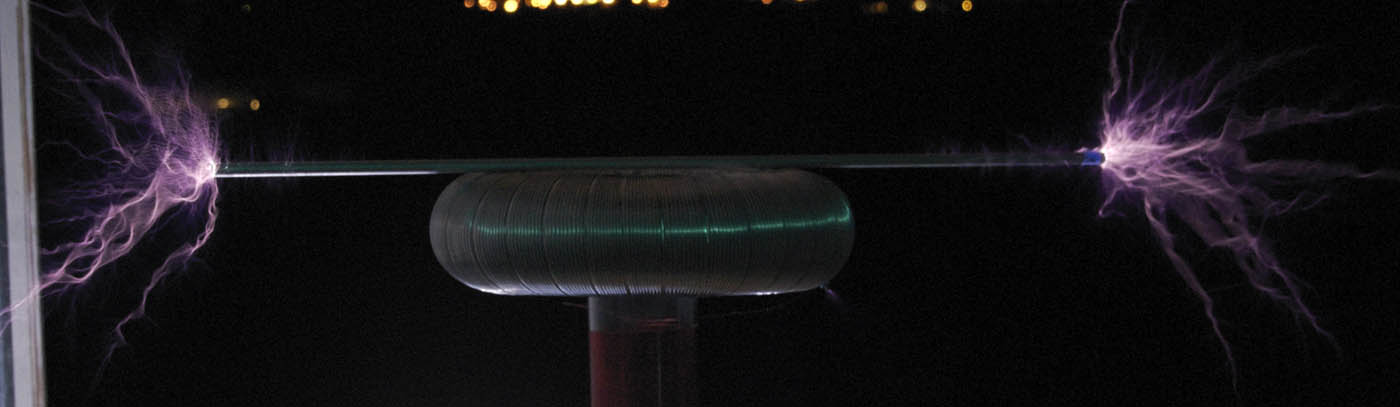

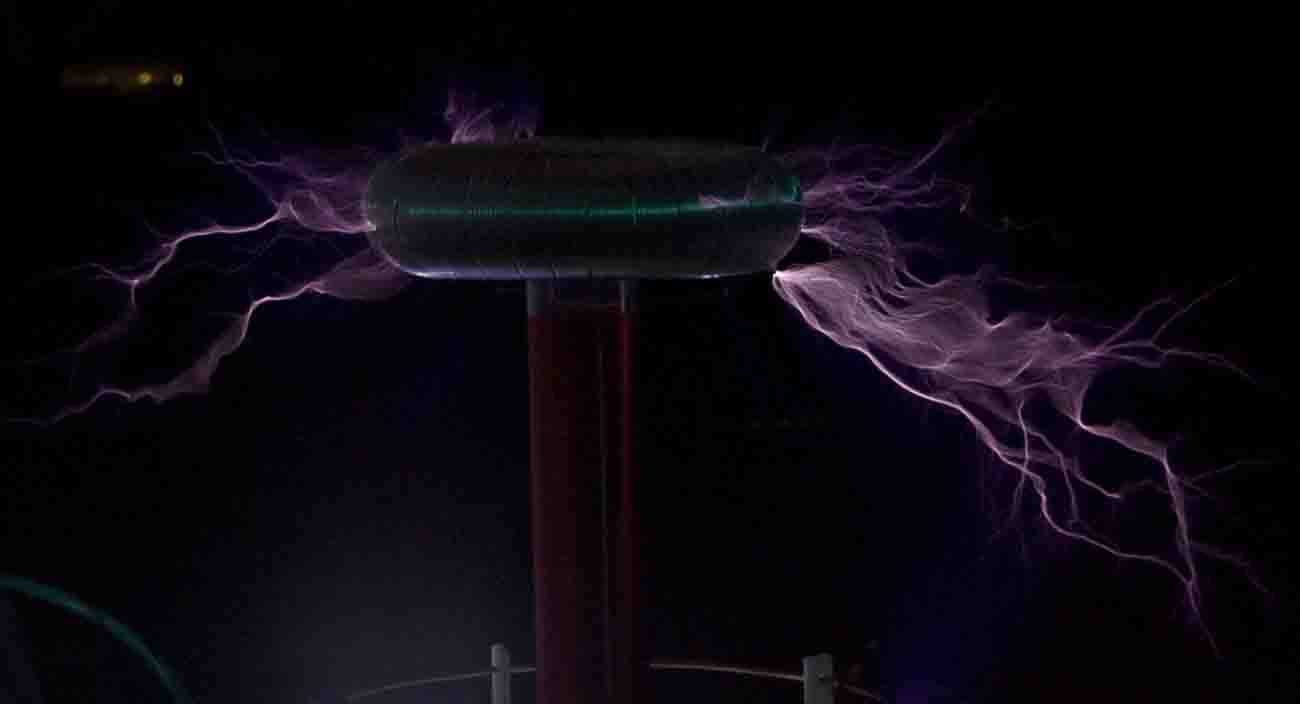

Final Results

The maximum spark lenth was 30 inches. Input power was less than 1000 Watts.
